Design and construction of flue gas filter, fan and condenser of Põrguvälja boiler house
Description
Within the scope of this project, a flue gas filter, ventilator, and condenser were designed and installed on the existing solid fuel boiler with the necessary reconstruction and modification works to increase the efficiency of fuel use, reducing the importance of natural gas use, and reducing the amount of emissions directed to the outside air with flue gases.
During this project, the following works were carried out:
Chimney: The existing chimney was reconstructed, and a new stainless steel flue was fabricated and installed.

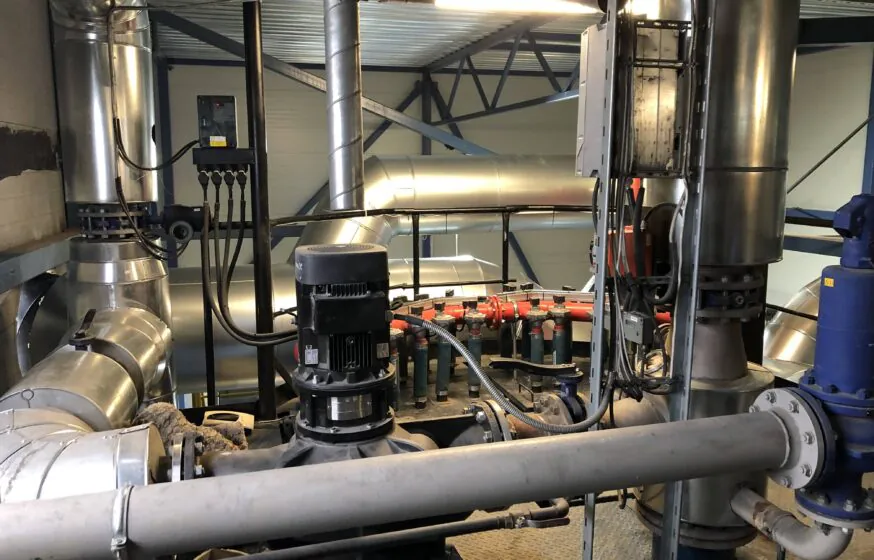

Smoke passage: A new flue gas pipeline was designed and built from the smoke passage of the wood chip boiler with all the necessary equipment for measuring and controlling the operation modes of the flue gas condenser (triple, gas-tight shut-off valves, flue gas fan, measuring points according to standard EVS-EN 15259, measuring devices, etc.) to the chimney.
Flue gas fan: A new fan was designed and installed on the 6MW boiler. The latest fan has a productivity of 25000m3/h and the necessary back pressure, considering that the back pressure of the existing 6MW pre-heater, boiler, and multicyclone is 3000-4000Pa.

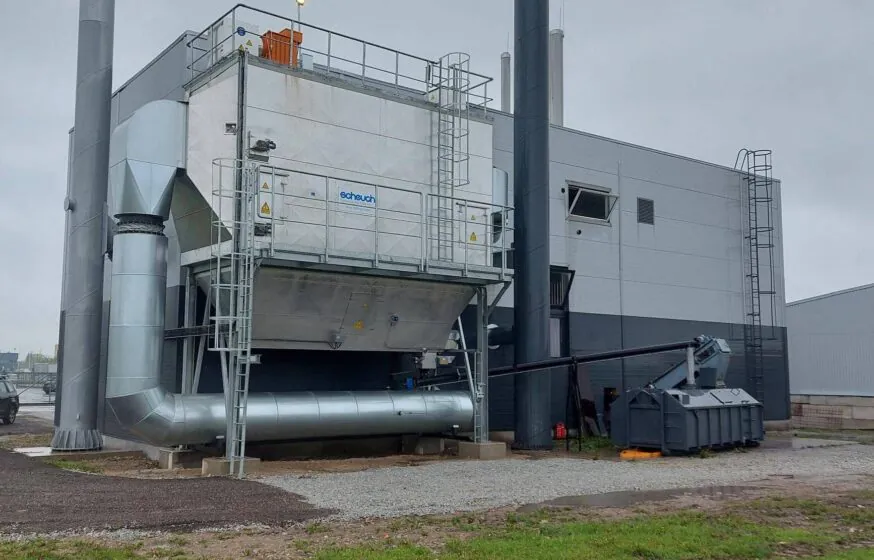

Flue gas electric filter: A new flue gas electric filter was designed and installed for flue gas productivity of 25000nm3/h, with the calculation that the solid particles’ content is 300mg/nm3. The filter also allows working with a 1.5MW boiler at 30% load.

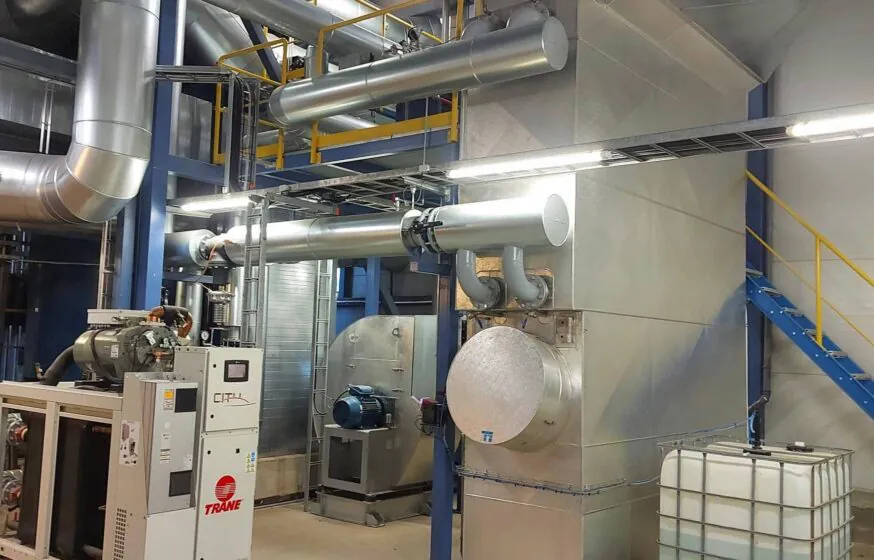

Flue gas condenser: The flue gas condenser, its auxiliary equipment, and pipelines were manufactured using stainless steel.
Customer | OÜ Põrguvälja Soojus |
Fuel | Biomass |
Power | 6 MW |
Project | Design and construction of flue gas filter, fan and condenser of Põrguvälja boiler house |
Installed | 2021 |
Why are we a good partner?
At Tamult, we pride ourselves on offering our partners and customers unparalleled expertise in the bioenergy field, along with high-quality delivery, installation, and exceptional after-sales service. Our commitment to excellence is not just a promise but a proven track record:
- Testament to Durability: The oldest device we’ve set up is still operational after over 25 years, symbolizing our commitment to lasting quality.
- Designed for Longevity: Our modern boiler houses are built to last, with an estimated lifespan of over 20 years and maintenance costs only amounting to 10-20% of the initial purchase price.
- Innovation at Its Core: Our factory is a hub of innovation, constantly exploring new ways to enhance product efficiency. Rest assured, every product that leaves our facility meets all regulatory standards and customer requirements.
Choose Tamult for a partnership that guarantees not just cutting-edge solutions but also enduring value and support every step of the way.
